ESP32 DIN Rail Level Shifter, 30PIN 3.3V-5V Bi-Directional 1MHz, Screw Terminal, Reverse Polarity Protection, Solid State Relay Control Expansion Board (only Board)
4.3 (16 items)
Limited Time Sale$11.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 247511062 | Release Date | 2026/08/16 | List Price | $7.96 | Model Number | 247511062 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

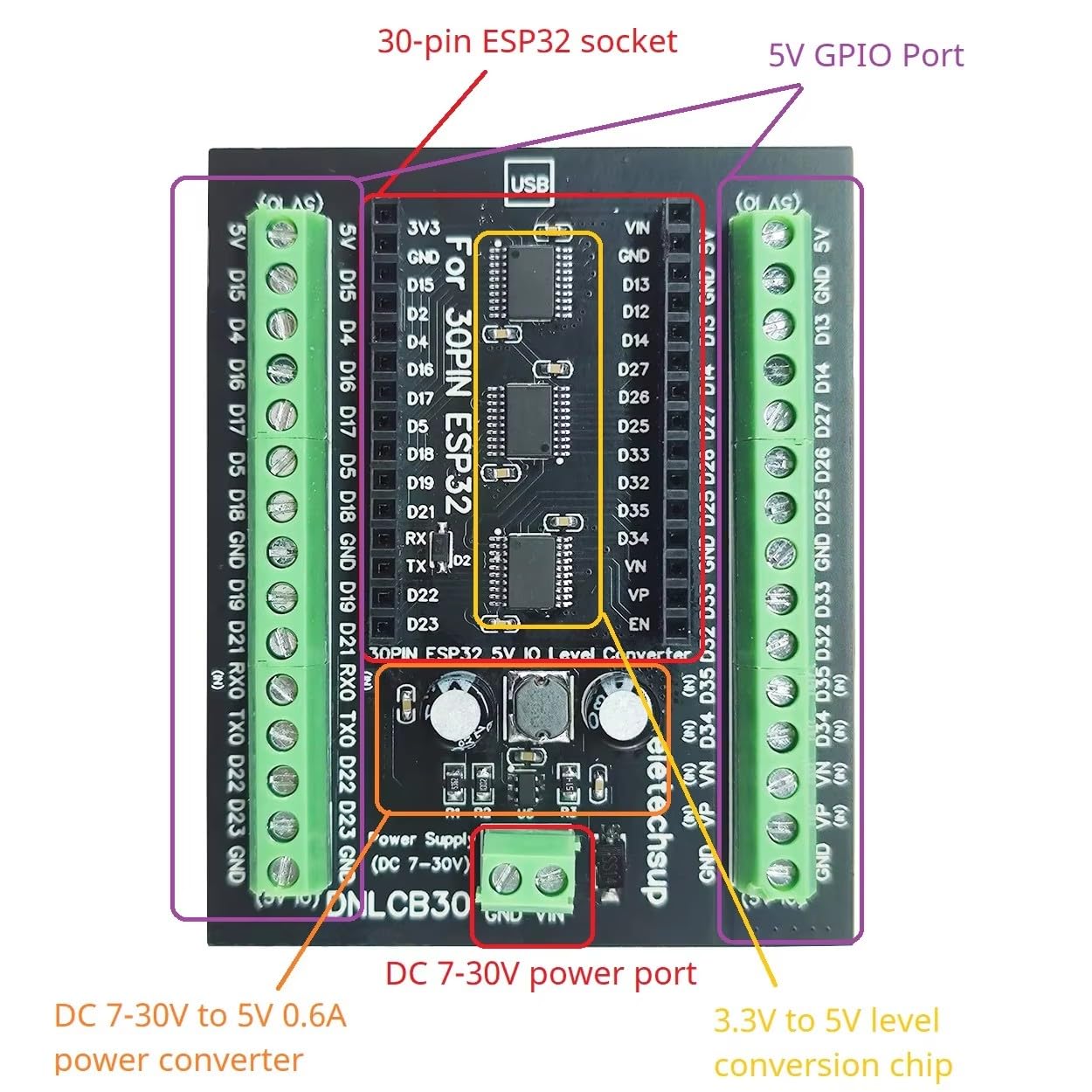

DNLCB30 is a 30PIN ESP32 3.3V to 5V bidirectional level converter board. It can convert the 3.3V level of ESP32 to 5V level input/output.Description:30PIN ESP32 3.3V to 5V Bidirectional Level Converter1 Working voltage DC 7-35V, input reverse polarity protection.2 With DC 5V external output power supply, minimum output current 0.5A, output short circuit protection.3 3.3V to 5V DIO level bidirectional conversion4 Lead out almost all IO ports (Except 2/12PIN)5 Automatic input and output switching6 Maximum conversion rate 1MHZ7 Terminal spacing: 3.96mm.8 Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.9 Size: 72 *58 * 9mm(only Board),86 *60 * 35mm(with Rail Box)10 Weight: 33g(only Board),82g(with Rail Box)Use:DIN Rail Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.Notice:1:This is just an expansion board. You need to insert a 30-pin ESP32 board when using it.2: 2/12PIN didn't lead out3: 3(RX0)/34/35/36(VP)/39(VN) pin can only be used as an input pin4: When RX0/TX0 is used as an input pin, it should be set to pull up5: Can only convert digital quantities, not analog quantitiesDIN rail Box parameters:Product model: UM72Color: GreenWidth: suitable for PCB board width UM72(72mm)Insulation grade: flame-retardant VO gradeBackplane length: suitable for 58 mm PCB boardsNet weight: 48gInstallation: DIN35 and C45 rail
- 30PIN ESP32 Level Shifter 3.3V to 5V bidirectional level conversion, maximum conversion rate 1MHz.
- Wide Voltage & Protection DC 7-35V working voltage, input reverse polarity protection, output short circuit protection.
- Rich IO Port Expansion Leads out almost all IO ports (except 2/12PIN), with 5V external output (min 0.5A).
- Industrial DIN Rail Design Includes green DIN rail box (model UM72, flame-retardant V0 grade), suitable for industrial applications.
- Compact & Durable Size: 72589mm (board only), 866035mm (with box); Weight: 33g (board), 82g (with box).
| ASIN | B0GKGT45L1 |
|---|---|
| Item Weight | 2.12 ounces |
| Manufacturer | Eletechsup |
| Package Dimensions | 5.12 x 5.12 x 1.57 inches |
