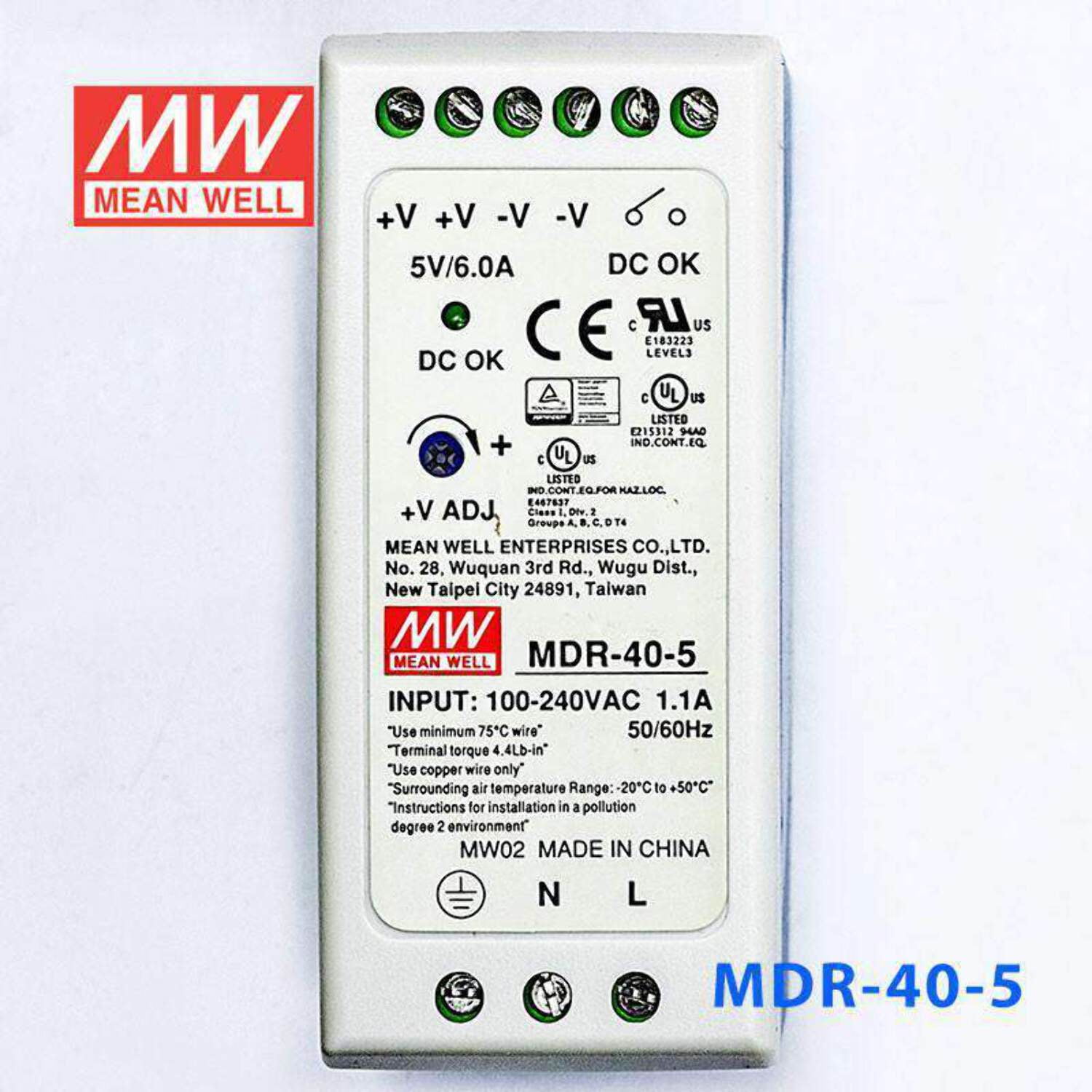

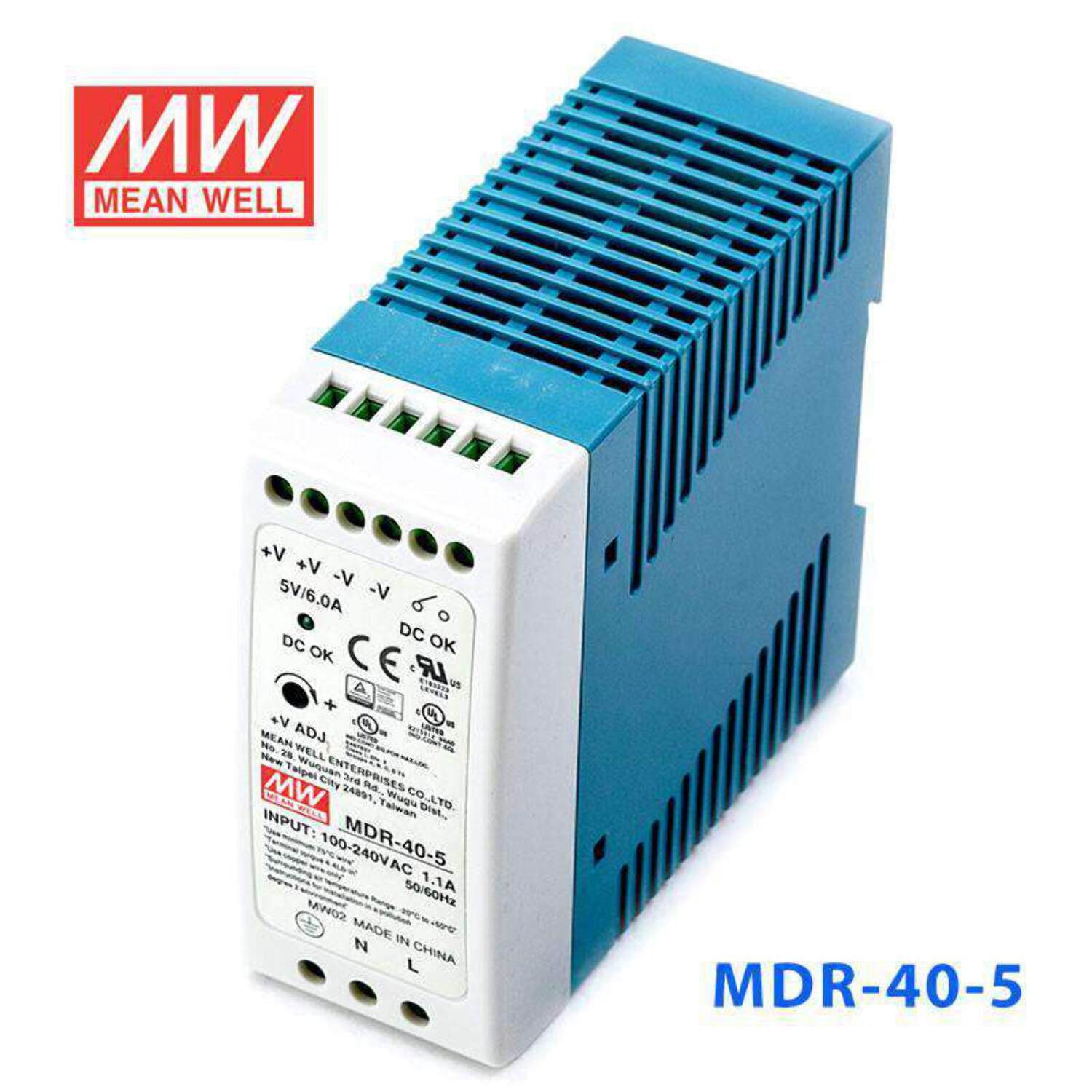

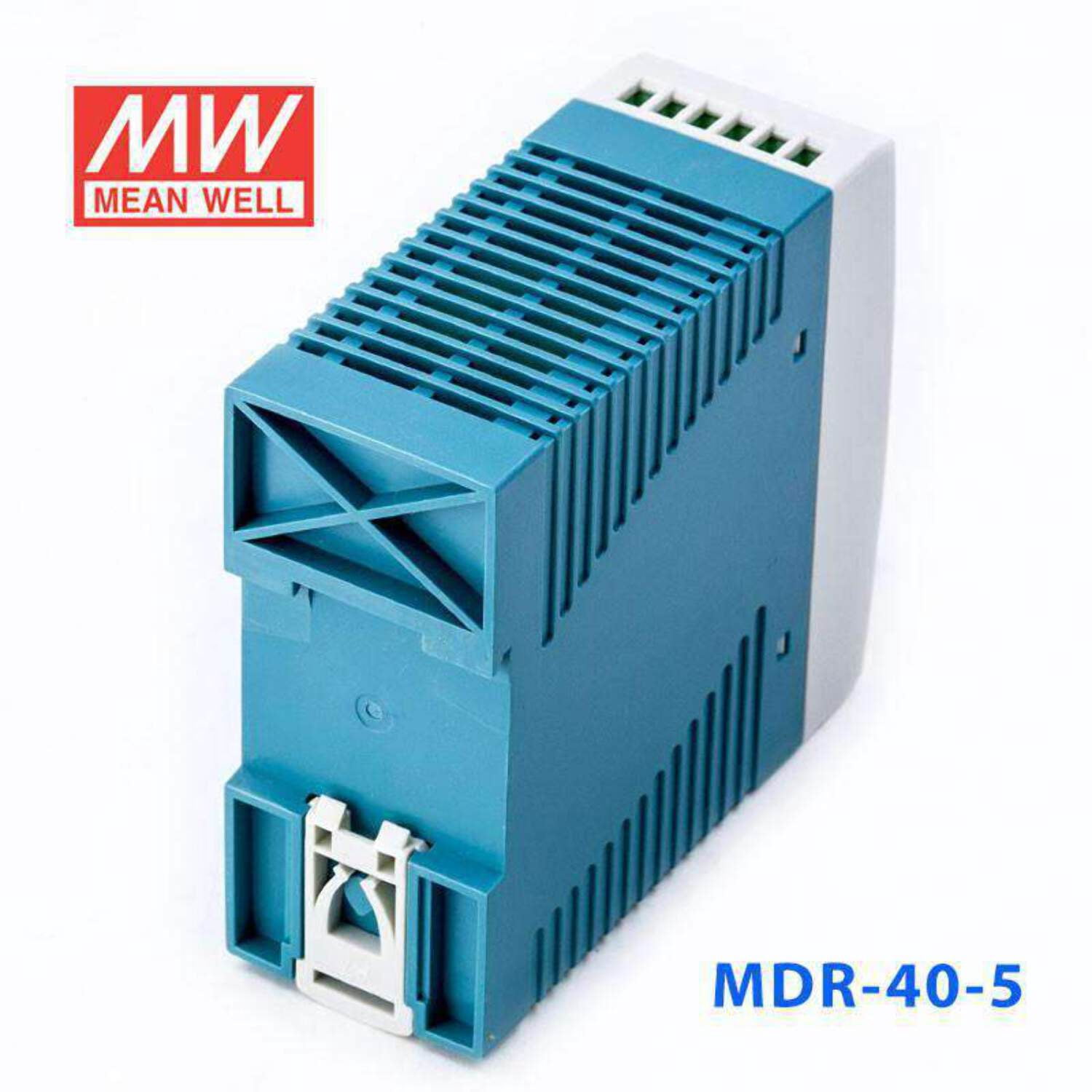

Mean Well MDR-40-5 Single Output Industrial Power Supply 40W 5V - DIN Rail

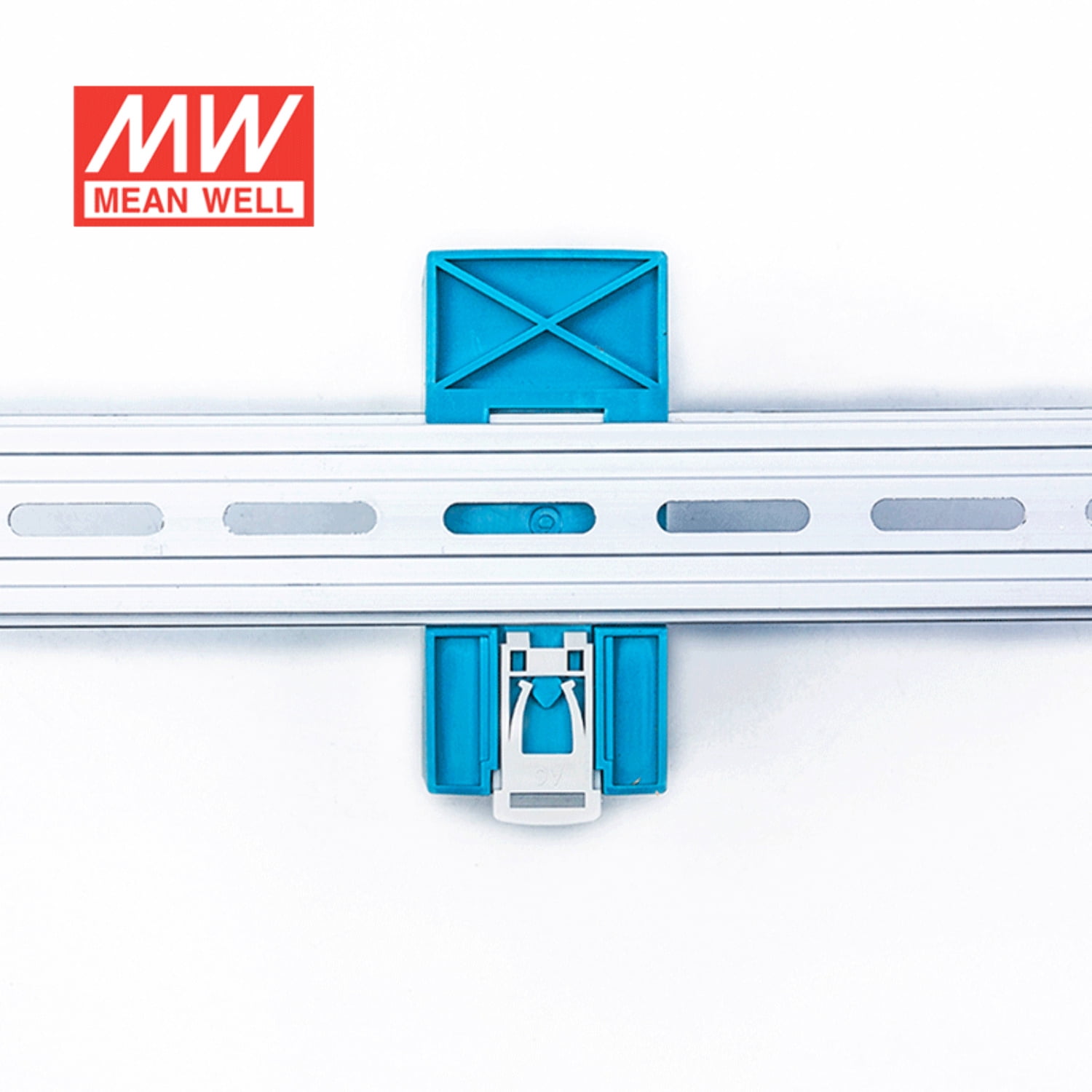

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>Installed on DIN rail TS35 / 7.5 or 15</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage</td></tr><tr><td>No load power consumption &lt;0.75W</td></tr><tr><td>LED indicator for power on</td></tr><tr><td>DC OK relay contact</td></tr><tr><td>Cooling by free air convection</td></tr><tr><td>100% full load burn-in test</td></tr><tr><td>3 years warranty</td></tr></tbody></table><br><em></em> General Specification&nbsp;<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>85~264VAC; 120~370VDC</td></tr><tr><td><strong>AC inrush current</strong></td><td>Cold start, 30A at 115VAC, 60A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>0~+20% rated output voltage</td></tr><tr><td><strong>Overload protection</strong></td><td>105%~150% constant current limiting, auto-recovery</td></tr><tr><td><strong>Over voltage protection</strong></td><td>125%~150% rated output voltage</td></tr><tr><td><strong>Setup, rise, hold up time</strong></td><td>500ms, 30ms, 50ms</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute</td></tr><tr><td><strong>Working temperature</strong></td><td>-20~+70°C (refer to output derating curve)</td></tr><tr><td><strong>DC OK signal</strong></td><td>Relay contact</td></tr><tr><td><strong>Safety standards</strong></td><td>UL508, TUV EN60950-1, UL60950-1 approved</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level</td></tr><tr><td><strong>Connection</strong></td><td>IP: 3 poles, O/P: 6 poles screw DIN terminal</td></tr><tr><td><strong>Dimension (LxWxH)</strong></td><td>40x90x100</td></tr><tr><td><strong>Packing</strong></td><td>42pcs / 13.6kg</td></tr></tbody></table>
