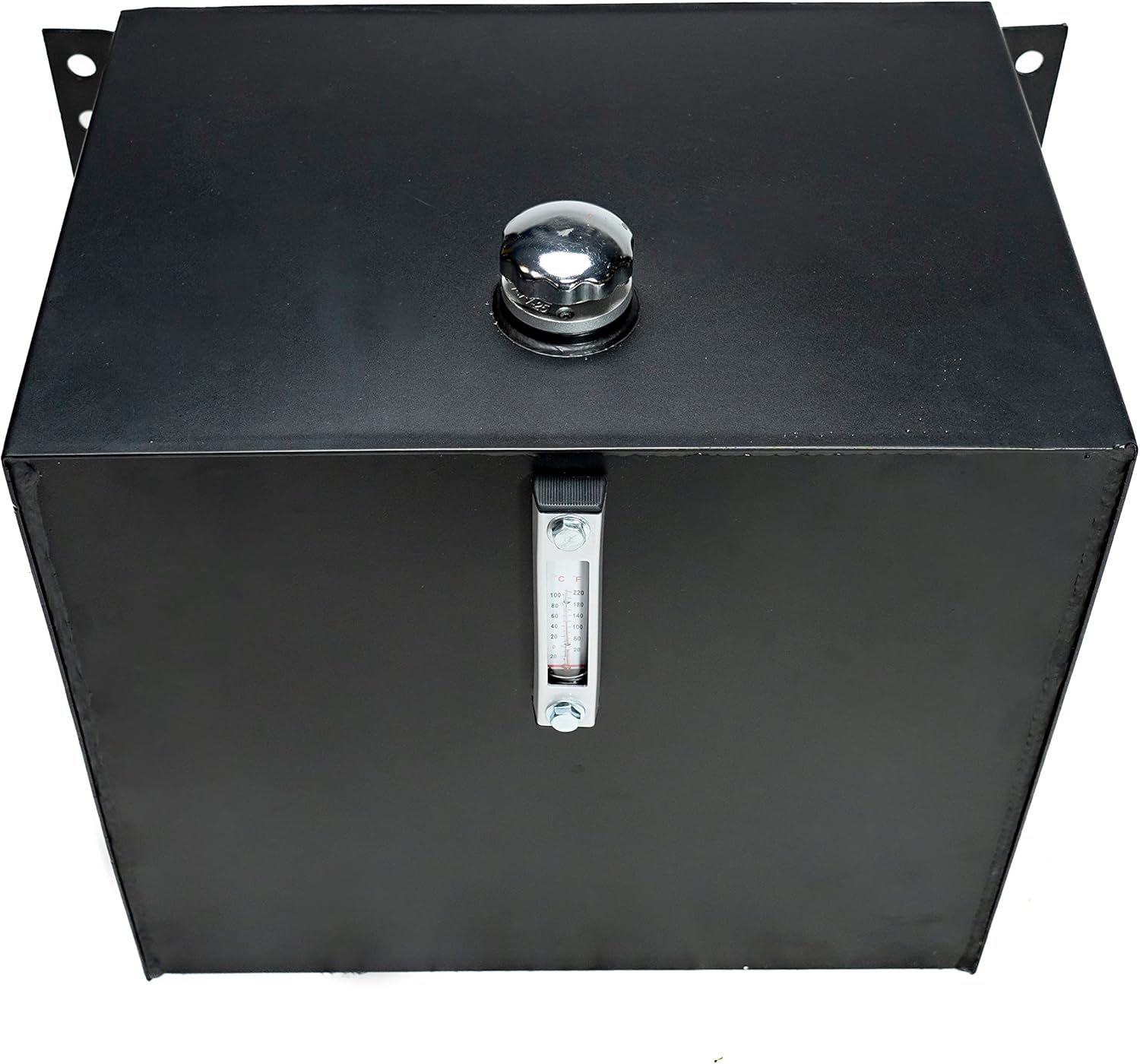

Tool-Tuff 25-Gallon Hydraulic Fluid Reservoir Tank, Side Vertical-Mount, w/Temp Gauge, Sight-Gauge & Breather/Strainer Fill Cap, 25Gallon, Black
4.7 (141 items)
Limited Time Sale$179.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220357943 | Release Date | 2026/05/03 | List Price | $119.60 | Model Number | 220357943 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Tool-Tuff line of versatile hydraulic fluid reservoirs are factory leak-tested and include many features to help make your DIY project or repair a success. Features & Specs: - 25-Gallon Fluid Capacity - Heavy duty steel construction - Built-in Sight Gauge/Temp Gauge Combo - Factory Leak-Tested - 2" wide fill port - One 2" NPT threaded ports - One 1.25" NPT threaded ports - Mounting brackets spaced 23.25" center-center across, with a maximum vertical bolt spacing of 14.5". Holes/slots are 3/4" diameter. - 40 micron breather cap with 1/4-turn release - Drain plug is not included, the port is a 7/8"-18 SAE, plug can be found at most auto stores - Internally baffled - Dimensions: 25.25 (including bracket width)x 15" long x 18.5" high (21" high with cap) - Weight: 72 lb - Comes with poly plugs for all ports (may not be rated for use in all applications, but it'll keep it from leaking on it's way to you) - 6-month warranty
- 25 Gallon Capacity, Heavy Duty 12 Ga Steel Construction
- 1/4-Turn Breather Cap w/Strainer, 2" Dia Opening
- Built-In Sight Gauge/Temp Gauge
- Versatile Side / Vertical Mount Mounting Brackets, Drilled/Slotted
- Magnetic Drain Plug, Dual 2" NPT Openings, Dual 1.25" Openings
| UPC | 676525271326 |
|---|---|
| Capacity | 25 Gallons |
| Fit Type | Universal |
| Brand Name | Tool Tuff |
| Unit Count | 1.0 Count |
| Manufacturer | Tool Tuff |
| Model Number | 25Gallon |
| Material Type | Alloy Steel |
| Product Grade | Replacement Part |
| Item Type Name | Hydraulic Tank |
| Item Dimensions | 30 x 30 x 25 inches |
| Manufacturer Part Number | 31-110 |
